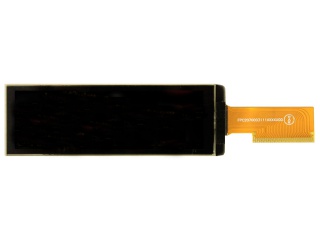

| Part Number | WEO002004CG |
| Mark | Winstar |
| Gréisst | 2.9 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | OLED , PM-OLED |
| Hellegkeet | |
| CR | 2000:1 |
| Faarwen | Mono(Green) |
| Géigeliicht | self |
| Interface | 8-bit |
| Fabrikant beschwéiert | Winstar |
| Modell Numm | WEO002004CG |
| Écran Gréisst | 2.9 inch |
| Écran Typ | OLED , PM-OLED |
| char Zuel | 20 characters × 4 lines 7PPI |
| char format | 5×8 dots |
| Char Pitch (mm) | 3.55×5.35 (H×V) |
| Char Gréisst (mm) | 2.97×4.77 (H×V) |
| aktiv Beräich (mm) | 70.42 × 20.85 (H×V) |
| Kontur (mm) | 84.5 × 27.5 × 2.25 (H×V×D) |
| Bezel Beräich (mm) | 72.42 × 22.82 (H×V) |
| Behandlung | - |
| luminance | - |
| Kontrast Verhältnis | 2000 : 1 (Typ.) (TM) |
| Vue Wénkel | 88/88/88/88 |
| Äntwert | 0.01 (Typ.) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | - |
| Faarfdéift | Mono(Green) |
| mass | - |
| benotzt fir | Instruments & Meters |
| Erfrëschungsrate | - |
| touchscreen | Without |
| Chauffer ic Lëscht | Built-in COG SSD1311M1Z |
| Signal Typ | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| Spannungsversuergung | 3.3/5.0V (Typ.)(VDD) |
