| Part Number | WEO002002AL |
| Mark | Winstar |
| Gréisst | 2.9 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | 2000:1 |
| Faarwen | Mono(Yellow) |
| Géigeliicht | self |
| Interface | 8-bit |
| Mark | Winstar |
| Modell | WEO002002AL |
| diagonal Gréisst | 2.9 inch |
| Typ | PM-OLED, OLED |
| char format | 5×8 dots |
| Schrëftgréisst | 3.22×5.57 mm |
| Schrëftgréisst | 3.7×5.95 mm |
| aktiv Beräich | 73.52(H)×11.52(V) mm |

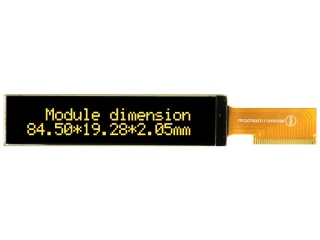

| kontur dim. | 84.5(H)×19.2(V) ×2.15(D) mm |
| bezel Beräich | 75.32(H)×13.52(V) mm |
| Behandlung | - |
| luminance | - |
| Kontrast Verhältnis | 2000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 0.01 (Typ.) |
| Vue Wénkel | 88/88/88/88 |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(Yellow) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| d-ic detail | COG Built-in SSD1311M1Z |
| Interface Typ | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| Stroumversuergung | 3.3/5.0V (Typ.)(VDD) |
| ACX399CMP-7 | SONY | 2.9 | 640×360 |
| AL2002A | Other | 2.9 | 20×2 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| SC2002A | Other | 2.9 | 20×2 |
| SC2004C | Other | 2.9 | 20×4 |
| SG12864A | Other | 2.9 | 128×64 |
