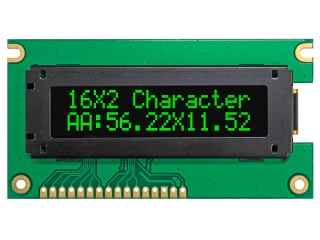

| Part Number | WEO001602GG |
| Mark | Winstar |
| Gréisst | 2.3 |
| Applikatioun | Instruments & Me |
| Opléisung | 16×27 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | 2000:1 |
| Faarwen | Mono(Green) |
| Géigeliicht | self |
| Interface | 8-bit |
| Panel Mark | Winstar |
| Panel Modell | WEO001602GG |
| Panel Gréisst | 2.3" |
| Panel Typ | PM-OLED, OLED |
| Display Format | 16 characters × 2 lines, 7PPI |
| Schrëftformat | 5×8 dots |
| Charakter Gréisst | 2.97×5.57(W×H) mm |
| Charakter Terrain | 3.55×5.95(W×H) mm |
| Affichage Beräich | 56.22(W)×11.52(H) mm |
| bezel Ouverture | 58.22(W)×13.52(H) mm |
| Kontur Gréisst | 79(W)×44(H) ×9.67(D) mm |
| Uewerfläch | - |
| Hellegkeet | - |
| Kontrast Verhältnis | 2000:1 (Typ.) (TM) |
| Vue Wénkel | 88/88/88/88 |
| Display Modus | - |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 0.01 (Typ.) |
| weisen Faarwen | Mono(Green) |
| Lampe Typ | self |
| Frequenz | - |
| Touchscreens | Without |
| Chauffeur ic | COGBuilt-in SSD1311M1Z |
| Panel Gewiicht | - |
| Applikatioun | Instruments & Meters |
| Signal Interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| Input Volt | 3.3/5.0V (Typ.)(VDD) |
