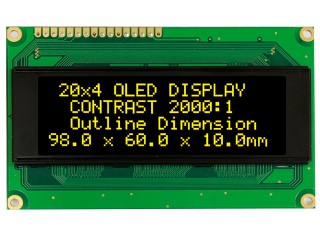

| Part Number | WEH002004BL |
| Mark | Winstar |
| Gréisst | 2.9 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Yellow) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Mark | Winstar |
| Modell | WEH002004BL |
| diagonal Gréisst | 2.9 inch |
| Typ | PM-OLED, OLED |
| char format | 5×8 dots |
| Schrëftgréisst | 2.9×4.75 mm |
| Schrëftgréisst | 3.54×5.4 mm |
| aktiv Beräich | 70.16(H)×20.95(V) mm |
| kontur dim. | 98(H)×60(V) ×10(D) mm |
| bezel Beräich | 77(H)×25.2(V) mm |
| Behandlung | - |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(Yellow) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| d-ic detail | COB Built-in WS0010 |
| Interface Typ | CPU/SPI , 16 pins FPC |
| Stroumversuergung | 5.0V (Typ.) |
