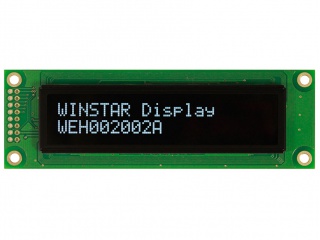

| Part Number | WEH002002AW |
| Mark | Winstar |
| Gréisst | 3.1 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(White) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Mark | Winstar |
| Modell | WEH002002AW |
| diagonal Gréisst | 3.1 inch |
| Typ | PM-OLED, OLED |
| char format | 5×8 dots |
| Schrëftgréisst | 3.2×5.55 mm |
| Schrëftgréisst | 3.9×6.3 mm |
| aktiv Beräich | 77.3(H)×11.85(V) mm |
| kontur dim. | 116(H)×37(V) ×9.8(D) mm |
| bezel Beräich | 85(H)×18.6(V) mm |
| Behandlung | - |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(White) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| d-ic detail | COB Built-in WS0010 |
| Interface Typ | CPU/SPI , 16 pins Pad |
| Stroumversuergung | 5.0V (Typ.) |
