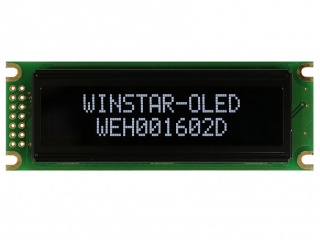

| Part Number | WEH001602DW |
| Mark | Winstar |
| Gréisst | 2.3 |
| Applikatioun | Instruments & Meters |
| Opléisung | 5×8 |
| Zesummesetzung | PM-OLED , OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(White) |
| Géigeliicht | self |
| Interface | 8-bit |
| Mark | Winstar |
| diagonal Gréisst | 2.3 inch |
| char format | 5×8 dots |
| Schrëftgréisst | 2.95×5.55 mm |
| aktiv Beräich | 56.95(H)×11.85(V) mm |
| bezel Beräich | 66(H)×16(V) mm |
| Vue Richtung | Symmetry |
| Vue Wénkel | - |
| Ënnerstëtzung Faarf | Mono(White) |
| Gewiicht | - |
| Frame Taux | - |
| d-ic detail | COB Built-in WS0010 |
| Interface Typ | 8-bit 6800/8080 parallel , 14 pins Pad |
| Stroumversuergung | 5.0V (Typ.) |
| Modell | WEH001602DW |
| Typ | PM-OLED , OLED |
| Schrëftgréisst | 3.6×6.3 mm |
| kontur dim. | 85(H)×30(V) ×10(D) mm |
| Behandlung | - |
| Äntwert Zäit | - |
| Betribssystemer Modus | - |
| Liichtquell | self |
| entworf fir | Instruments & Meters |
| Touch Panel | Without |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
