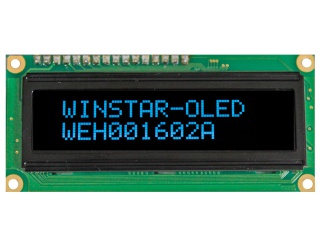

| Part Number | WEH001602AS |
| Mark | Winstar |
| Gréisst | 2.3 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | 2000:1 |
| Faarwen | Mono(Blue) |
| Géigeliicht | self |
| Interface | |
| Mark | Winstar |
| Modell | WEH001602AS |
| diagonal Gréisst | 2.3 inch |
| Typ | PM-OLED, OLED |
| char format | 5×8 dots |
| Schrëftgréisst | 2.95×5.55 mm |
| Schrëftgréisst | 3.6×6.3 mm |
| aktiv Beräich | 56.95(H)×11.85(V) mm |
| kontur dim. | 80(H)×36(V) ×10(D) mm |
| bezel Beräich | 66(H)×16(V) mm |
| Behandlung | - |
| luminance | - |
| Kontrast Verhältnis | 2000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 0.01 (Typ.) |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(Blue) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| Operating Temperature: -40 ~ 80 °C - |
