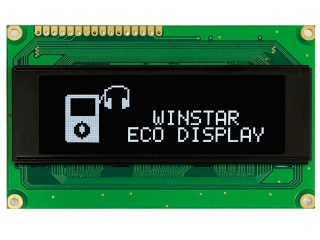

| Part Number | WEG010032BW |
| Mark | Winstar |
| Gréisst | 2.4 |
| Applikatioun | Instruments & Me |
| Opléisung | 100×32 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(White) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | Winstar |
| Panel Modell | WEG010032BW |
| Panel Gréisst | 2.4" |
| Panel Typ | PM-OLED, OLED |
| Resolutioun | 100×32, 43PPI |
| Pixel Format | Rectangle |
| Affichage Beräich | 58.95(W)×19.15(H) mm |
| bezel Ouverture | 77(W)×25.2(H) mm |
| Kontur Gréisst | 98(W)×60(H) ×10(D) mm |
| Uewerfläch | - |
| Vue Wénkel | - |
| Display Modus | - |
| beschte Vue op | Symmetry |
| Äntwert Zäit | - |
| weisen Faarwen | Mono(White) |
| Lampe Typ | self |
| Frequenz | - |
| Touchscreens | Without |
| Chauffeur ic | COG Built-in WS0010 |
| Panel Gewiicht | - |
| Applikatioun | Instruments & Meters |
| Signal Interface | CPU/SPI , 16 pins FPC |
| Input Volt | 5.0V (Typ.) |
