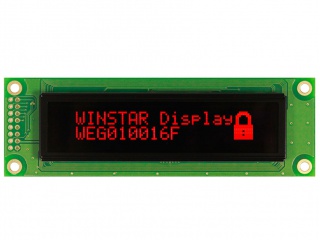

| Part Number | WEG010016FR |
| Mark | Winstar |
| Gréisst | 2.6 |
| Applikatioun | Instruments & Meters |
| Opléisung | 100×16 |
| Zesummesetzung | OLED , PM-OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Red) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Fabrikant beschwéiert | Winstar |
| Écran Gréisst | 2.6 inch |
| Pixel Zuel | 100×16 39PPI |
| aktiv Beräich (mm) | 64.95 × 11.15 (H×V) |
| Bezel Beräich (mm) | 85 × 18.6 (H×V) |
| Vue Wénkel | - |
| gutt Vue op | Symmetry |
| Faarfdéift | Mono(Red) |
| mass | - |
| Erfrëschungsrate | - |
| Chauffer ic Lëscht | Built-in COG WS0010 |
| Signal Typ | CPU/SPI , 16 pins Pad |
| Spannungsversuergung | 5.0V (Typ.) |
| max. Bewäertungen | - Operating Temp.: -40 ~ 80 °C |
| Modell Numm | WEG010016FR |
| Écran Typ | OLED , PM-OLED |
| Arrangement | Rectangle |
| Kontur (mm) | 116 × 37 × 9.8 (H×V×D) |
| Behandlung | - |
| Äntwert | - |
| Aarbecht Modus | - |
| benotzt fir | Instruments & Meters |
| touchscreen | Without |
| A026EAN01.0 | AUO | 2.6 | 800×1280 |
| AMDM001 | Samsung | 2.6 | 240×400 |
| AMS260CM61 | Samsung | 2.6 | 240×320 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| LS026Q3DX01 | SHARP | 2.6 | 240×320 |
| LS026Q7UX01 | SHARP | 2.6 | 320×240 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
