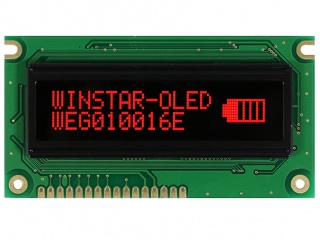

| Part Number | WEG010016ER |
| Mark | Winstar |
| Gréisst | 2.4 |
| Applikatioun | Instruments & Me |
| Opléisung | 100×16 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Red) |
| Géigeliicht | self |
| Interface | |
| Mark | Winstar |
| Modell | WEG010016ER |
| diagonal Gréisst | 2.4 inch |
| Typ | PM-OLED, OLED |
| Pixel Format | 100×16 42PPI |
| Configuratioun | Rectangle |
| aktiv Beräich | 59.95(H)×11.15(V) mm |
| kontur dim. | 84(H)×44(V) ×10(D) mm |
| bezel Beräich | 66(H)×16(V) mm |
| Behandlung | - |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(Red) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| 5.0V (Typ.) |
| 24QVW1H | SII | 2.4 | 240×320 |
| A024CN02 VL | AUO | 2.4 | 480×234 |
| A024CN02 VR | AUO | 2.4 | 480×234 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| LTM024P339 | TOSHIBA | 2.4 | 240×320 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| RX024A-03 | ROGIN | 2.4 | 480×234 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TP241MC01G | Neoview Kolon | 2.4 | 240×320 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
