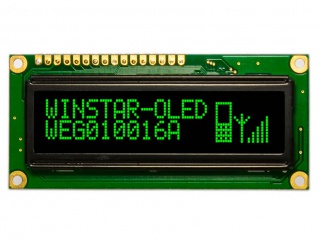

| Part Number | WEG010016AG |
| Mark | Winstar |
| Gréisst | 2.4 |
| Applikatioun | Instruments & Meters |
| Opléisung | 100×16 |
| Zesummesetzung | PM-OLED , OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Green) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Mark | Winstar |
| diagonal Gréisst | 2.4 inch |
| Pixel Format | 100×16 42PPI |
| aktiv Beräich | 59.95(H)×11.15(V) mm |
| bezel Beräich | 66(H)×16(V) mm |
| Vue Richtung | Symmetry |
| Vue Wénkel | - |
| Ënnerstëtzung Faarf | Mono(Green) |
| Gewiicht | - |
| Frame Taux | - |
| d-ic detail | COB Built-in WS0010 |
| Interface Typ | CPU/SPI , 16 pins Pad |
| Stroumversuergung | 5.0V (Typ.) |
| Modell | WEG010016AG |
| Typ | PM-OLED , OLED |
| Configuratioun | Rectangle |
| kontur dim. | 80(H)×36(V) ×10(D) mm |
| Behandlung | - |
| Äntwert Zäit | - |
| Betribssystemer Modus | - |
| Liichtquell | self |
| entworf fir | Instruments & Meters |
| Touch Panel | Without |
