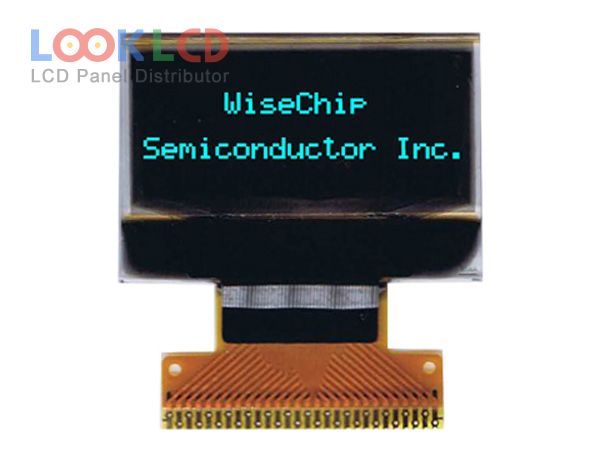

| Part Number | UG-9639TLBEG03 |
| Mark | WiseChip |
| Gréisst | 0.82 |
| Applikatioun | IA |
| Opléisung | 96×39 |
| Zesummesetzung | OLED |
| Hellegkeet | 100 |
| CR | 10000:1 |
| Faarwen | Mono(Blue) |
| Géigeliicht | self |
| Interface | CPU/SPI/I²C |
| Panel Mark | WiseChip |
| Panel Modell | UG-9639TLBEG03 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 0.82 inch |
| Resolutioun | 96×39 |
| aktiv Beräich | 19.372×7.858 mm |
| skizzéieren | 23.8×16.2×1.4 mm |
| Uewerfläch | |
| Hellegkeet | 100 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000 : 1 (Min.) |
| weisen Faarwen | Mono(Blue) (1-bit) |
| Vue Wénkel | |
| Chauffeur ic | COG Built-in SSD1306 |
| Signal Interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| Input Volt | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| Applikatioun | IA |
