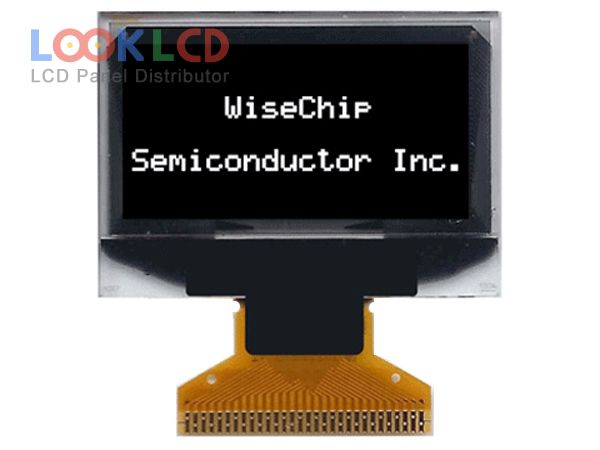

| Part Number | UG-2864KSWLG01 |
| Mark | WiseChip |
| Gréisst | 1.3 |
| Applikatioun | IA |
| Opléisung | 128×64 |
| Zesummesetzung | OLED |
| Hellegkeet | 100 |
| CR | 10000:1 |
| Faarwen | Mono(White) |
| Géigeliicht | self |
| Interface | CPU/SPI/I²C |
| Panel Mark | WiseChip |
| Panel Modell | UG-2864KSWLG01 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 1.3 inch |
| Resolutioun | 128×64 |
| aktiv Beräich | 29.42×14.7 mm |
| skizzéieren | 34.5×23×1.55 mm |
| Uewerfläch | |
| Hellegkeet | 100 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000 : 1 (Typ.) |
| weisen Faarwen | Mono(White) |
| Vue Wénkel | |
| Chauffeur ic | COG Built-in SSD1306 |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| Input Volt | 2.8/12.0V (Typ.)(VDD/VCC) |
| rohs: | |
| Applikatioun | IA |
