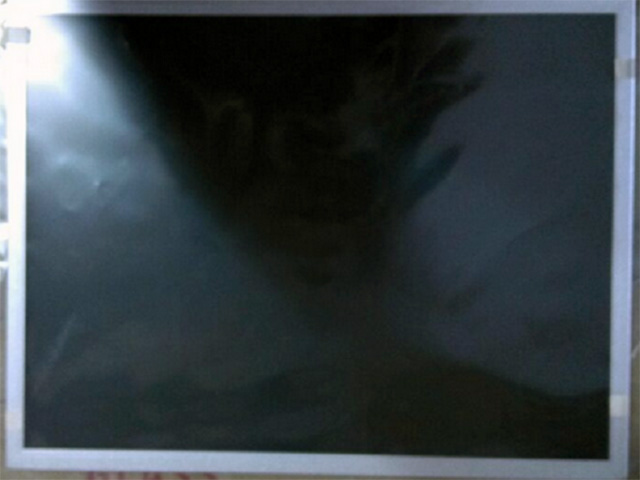

| Part Number | TX38D18VM2BAA |
| Mark | HITACHI |
| Gréisst | 15.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 13S3P WLED , 50K hours , With LED Driver |
| Interface | |
| Fabrikant beschwéiert | HITACHI |
| Modell Numm | TX38D18VM2BAA |
| Écran Gréisst | 15.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 304.128 × 228.096 (H×V) |
| Kontur (mm) | 326.5 × 253.5 × 12.03 (H×V×D) |
| Bezel Beräich (mm) | 307.4 × 231.3 (H×V) |
| Behandlung | Antiglare |
| luminance | 1100 cd/m² (Typ.) |
| Kontrast Verhältnis | 700 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/70/70 (Typ.)(CR≥10) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| gutt Vue op | 12 o'clock |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K/16.7M 59% NTSC |
| mass | 1.10Kgs (Typ.) |
| benotzt fir | Industrial Outdoor High Brightness |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |
