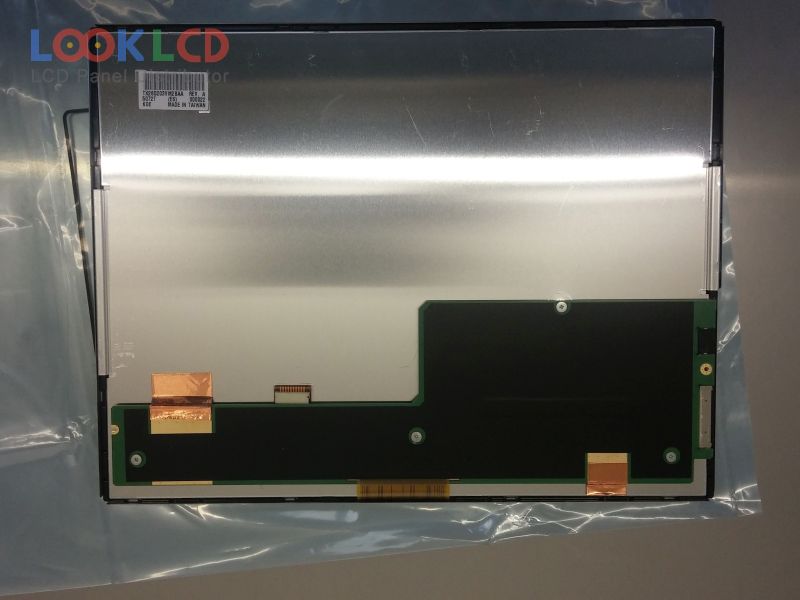

| Part Number | TX26D203VM2BAA |
| Mark | KOE |
| Gréisst | 10.4 |
| Applikatioun | IA |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 1200 |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | KOE |
| Panel Modell | TX26D203VM2BAA |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 235×180.2×10 mm |
| Uewerfläch | |
| Hellegkeet | 1200 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
