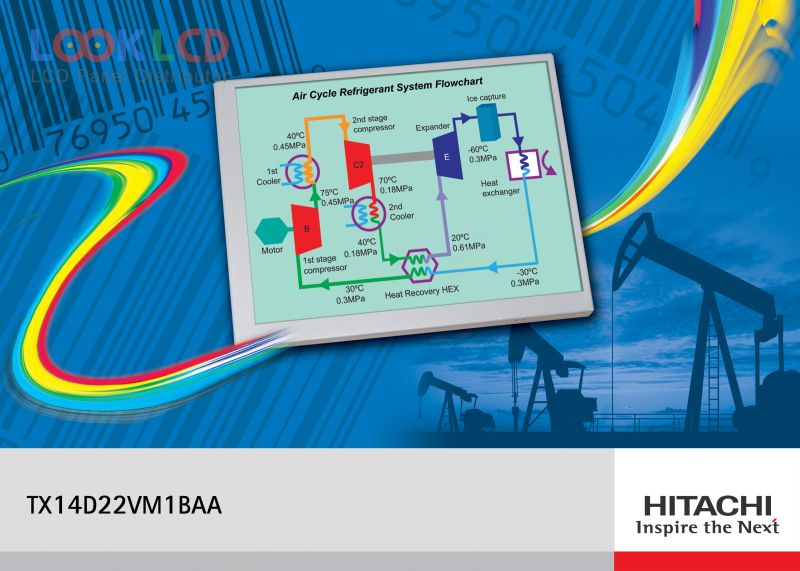

| Part Number | TX14D22VM1BAA |
| Mark | KOE |
| Gréisst | 5.7 |
| Applikatioun | IA |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 350:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | HITACHI |
| Panel Modell | TX14D22VM1BAA |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.7 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 115.2×86.4 mm |
| skizzéieren | 131×102.2×7.1 mm |
| Uewerfläch | |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/60 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S5PWLEDWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.)(VDD) |
| Applikatioun | IA |
