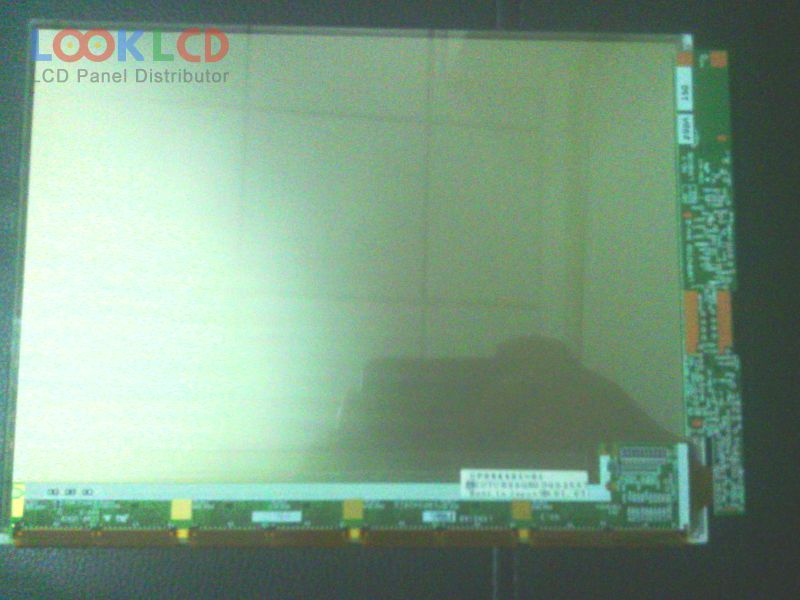

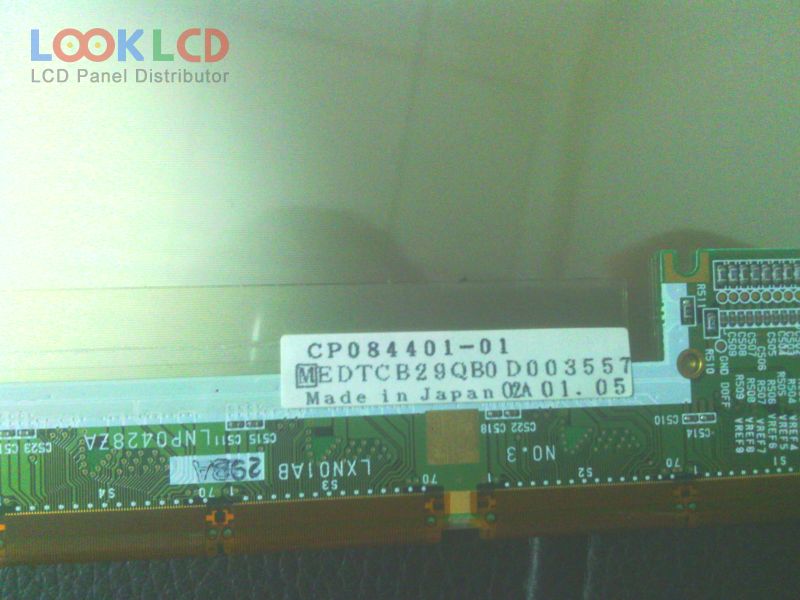

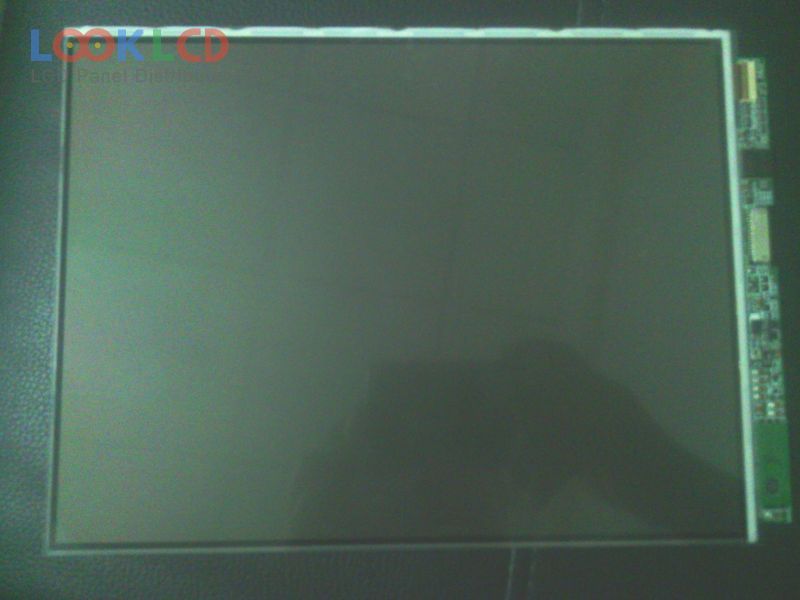

| Part Number | EDTCB29QB0 |
| Mark | Panasonic |
| Gréisst | 10.4 |
| Applikatioun | IA |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 262K |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | Panasonic |
| Panel Modell | EDTCB29QB0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Reflective |
| aktiv Beräich | 211.2×158.4 mm |
| Uewerfläch | Antiglare (Haze 11%), Hard coating (2H) |
| Hellegkeet | |
| Kontrast Verhältnis | 10:1 (Typ.)(Reflective) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 15/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 35/35/35/35 (Min.)(CR≥2)(L/R/U/D) |
| Lampe Typ | No B/L |
| Signal Interface | LVDS (1 ch, 6-bit), 14 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
