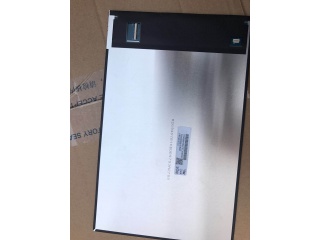

| Part Number | TV101WUM-NL4 |
| Mark | BOE |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1200×1920 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | BOE |
| Modell | TV101WUM-NL4 |
| diagonal Gréisst | 10.1 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1200(RGB)×1920 [WUXGA] 225PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 135.36(H)×216.576(V) mm |
| kontur dim. | - |
| luminance | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | HADS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M |
| Liichtquell | WLED , 15K hours , W/O Driver |
| Gewiicht | - |
| entworf fir | Pad & Tablet |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | MIPI (4 data lanes) Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
