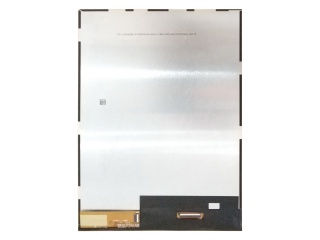

| Part Number | TV097QXM-NU0 |
| Mark | BOE |
| Gréisst | 9.7 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1536×2048 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S6P WLED , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Modell Numm | TV097QXM-NU0 |
| Écran Gréisst | 9.7 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1536(RGB)×2048 (QXGA) 264PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 147.456 × 196.608 (H×V) |
| Kontur (mm) | 152.536 × 206.548 × 3.2 (H×V×D) |
| luminance | 460 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Min.)(CR≥10) |
| Äntwert | 30 (Max.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 72% NTSC |
| mass | 110g (Max.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (2 ch, 4 data lanes) , Connector 61 pins |
| Spannungsversuergung | 1.8/5.5/-5.5V (Typ.)(VCC/AVDD/AVEE) |
| max. Bewäertungen | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
