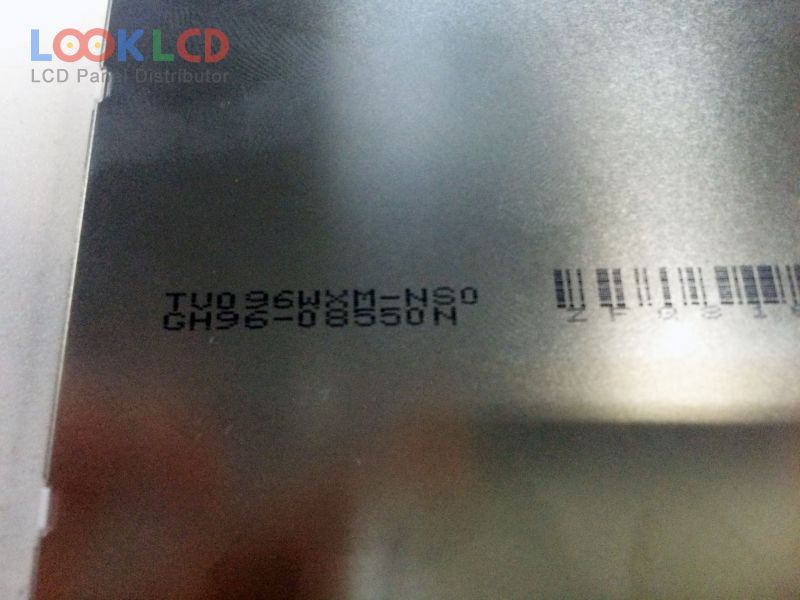

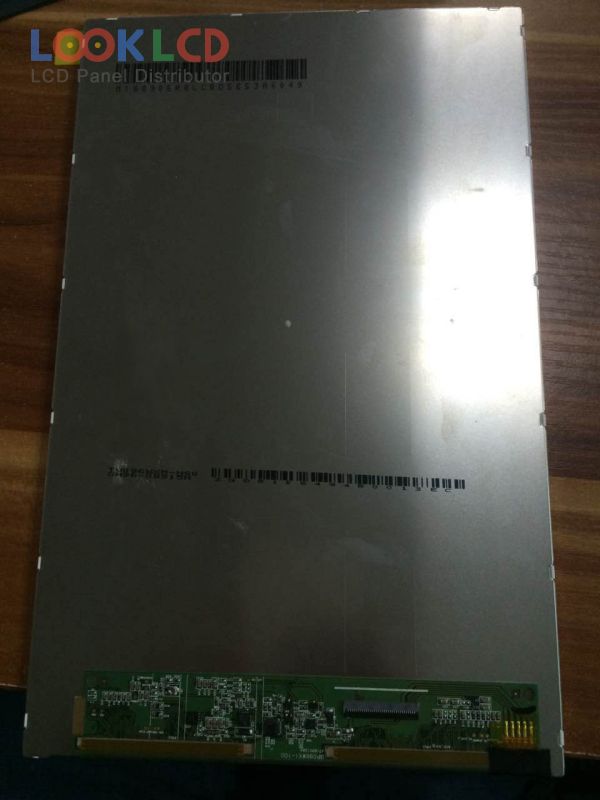

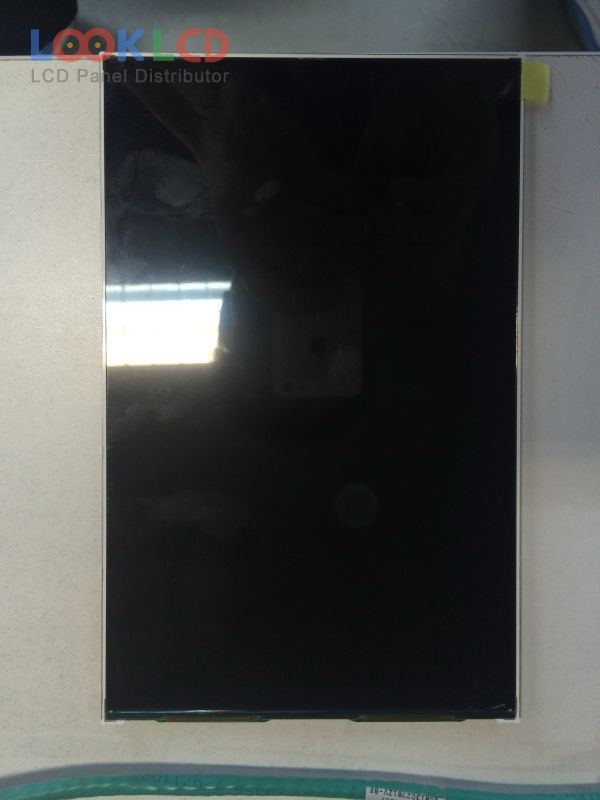

| Part Number | TV096WXM-NS0 |
| Mark | BOE |
| Gréisst | 9.6 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | BOE |
| Panel Modell | TV096WXM-NS0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.6 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | ADS, Normally Black, Transmissive |
| aktiv Beräich | 129×206.4 mm |
| skizzéieren | 136.7×217×4.65 mm |
| Uewerfläch | Hard coating, Antireflection |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193147% |
| Äntwert Zäit | |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S4PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 34 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
