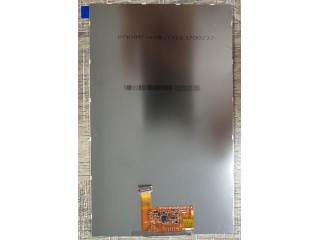

| Part Number | TV070WXM-NS0 |
| Mark | BOE |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | 5S4P WLED , 20K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Modell Numm | TV070WXM-NS0 |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×1280 (WXGA) 215PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 94.2 × 150.72 (H×V) |
| Kontur (mm) | 99.7 × 160.93 × 3.8 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating (3H), Antireflection |
| luminance | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 900 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 50% NTSC |
| mass | 74.5g (Typ.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (4 data lanes) , 34 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
