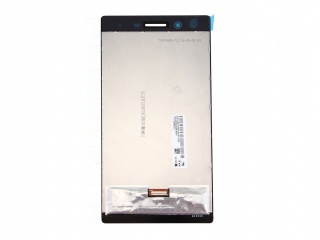

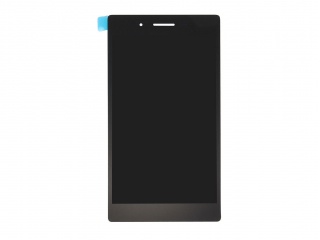

| Part Number | TV070WSM-TL1 |
| Mark | BOE |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 600×1024 |
| Zesummesetzung | Assembly , a-Si TF |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S3P WLED , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Modell Numm | TV070WSM-TL1 |
| Écran Gréisst | 7.0 inch |
| Écran Typ | Assembly , a-Si TFT-LCD |
| Pixel Zuel | 600(RGB)×1024 (WSVGA) 170PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 89.28 × 152.37 (H×V) |
| Kontur (mm) | 97 × 188.26 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating |
| luminance | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | - |
| Faarfdéift | 16.7M 50% NTSC |
| mass | 125g (Max.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | On-Cell Touch |
| Signal Typ | MIPI (4 data lanes) , 39 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
