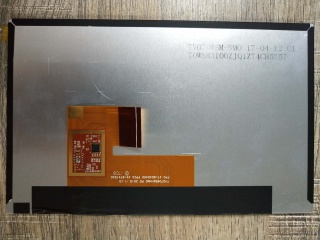

| Part Number | TV070WSM-NM0 |
| Mark | BOE |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1024×600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | BOE |
| Panel Modell | TV070WSM-NM0 |
| Panel Gréisst | 7.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1024(RGB)×600, WSVGA, 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 153.6(W)×90(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 161.16(W)×100.97(H) ×4.8(D) mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Display Modus | ADS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.7M 50% NTSC |
| Lampe Typ | WLED , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 90.0g (Max.) |
| Applikatioun | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes) , 40 pins Connector |
| Input Volt | 1.8/3.3/9/19/-7V (Typ.)(VDD1/VDD3/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -40 ~ 85 °C |
| 70WVW3T | SII | 7.0 | 800×480 |
| A070SN02 V0 CELL | AUO | 7.0 | 800×600 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| NL8048BC19-02C | NLT | 7.0 | 800×480 |
