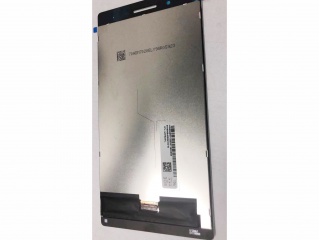

| Part Number | TV070HDM-TL0-39P0 |
| Mark | BOE |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 720×1280 |
| Zesummesetzung | a-Si TFT-LCD, Assemb |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S3P |
| Interface | MIPI |
| Panel Mark | BOE |
| Panel Modell | TV070HDM-TL0-39P0 |
| Panel Gréisst | 7.0" |
| Panel Typ | a-Si TFT-LCD, Assembly |
| Resolutioun | 720(RGB)×1280, WXGA, 209PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 87.2654(W)×155.136(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 93.08(W)×183.38(H) mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Display Modus | - |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.7M 55% NTSC |
| Lampe Typ | 6S3P WLED , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | On-Cell Touch |
| Panel Gewiicht | 130g (Max.) |
| Applikatioun | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes) , 39 pins Connector |
| Input Volt | 1.8/5.0/-5.0V (Typ.)(VDDI/VSP/VSN) |
| Ëmwelt | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
