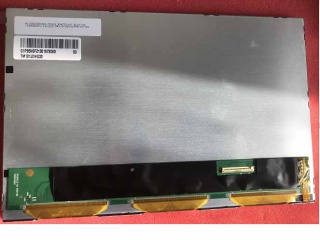

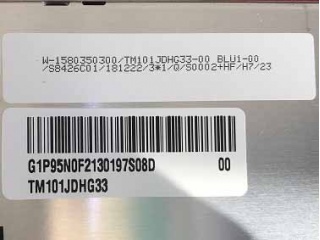

| Part Number | TM101JDHG33 |
| Mark | TIANMA |
| Gréisst | 10.1 |
| Applikatioun | Industrial Medical I |
| Opléisung | 1280×800 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | TIANMA |
| diagonal Gréisst | 10.1 inch |
| Pixel Format | 1280(RGB)×800 [WXGA] 149PPI |
| aktiv Beräich | 216.96(H)×135.6(V) mm |
| bezel Beräich | 219.96(H)×138.6(V) mm |
| luminance | 900 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K/16.7M 50% NTSC |
| Gewiicht | 280g (Typ.) |
| Frame Taux | 60Hz |
| Interface Typ | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| Modell | TM101JDHG33 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 229.8(H)×149(V) ×9.6(D) mm |
| Behandlung | Hard coating |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Betribssystemer Modus | SFT, Normally Black, Transmissive |
| Liichtquell | WLED , 40K hours , With LED Driver |
| entworf fir | Industrial Medical Imaging Outdoor High Brightness |
| Touch Panel | Without |
