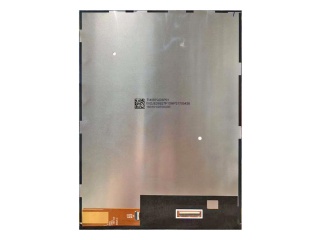

| Part Number | TM097QDSP01 |
| Mark | TIANMA |
| Gréisst | 9.7 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1536×2048 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S6P WLED , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | TIANMA |
| Modell Numm | TM097QDSP01 |
| Écran Gréisst | 9.7 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1536(RGB)×2048 (QXGA) 264PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 147.456 × 196.608 (H×V) |
| Kontur (mm) | 154.016 × 207.83 × 3.75 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating |
| luminance | 460 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | SFT, Normally Black, Transmissive |
| Faarfdéift | 16.7M 72% NTSC |
| mass | 110g (Typ.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (2 ch, 4 data lanes) , 61 pins Connector |
| Spannungsversuergung | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| max. Bewäertungen | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| BF097XN | Innolux | 9.7 | 1024×768 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPAV | LG Display | 9.7 | 2048×1536 |
| LP097QX2-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
