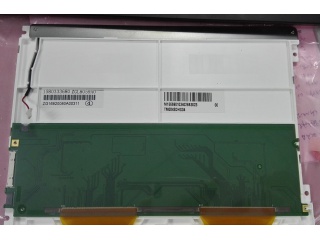

| Part Number | TM084SDHG04 |
| Mark | TIANMA |
| Gréisst | 8.4 |
| Applikatioun | Industrial |
| Opléisung | 800×600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 8S3P |
| Interface | LVDS |
| Panel Mark | TIANMA |
| Panel Modell | TM084SDHG04 |
| Panel Gréisst | 8.4" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 800(RGB)×600, SVGA, 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 170.4(W)×127.8(H) mm |
| bezel Ouverture | 173.0(W)×130.6(H) mm |
| Kontur Gréisst | 203(W)×143.5(H) ×7.05(D) mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/60/70 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 12 o'clock |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K 40% NTSC |
| Lampe Typ | 8S3P WLED , 30K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 240g (Typ.) |
| Applikatioun | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
