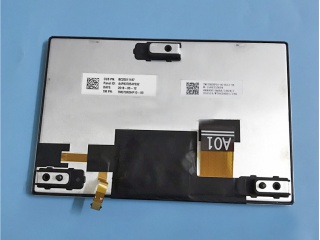

| Part Number | TM070RDHP10-00 |
| Mark | TIANMA |
| Gréisst | 7.0 |
| Applikatioun | Automotive Display |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | TIANMA |
| Modell | TM070RDHP10-00 |
| diagonal Gréisst | 7.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 152.4(H)×91.44(V) mm |
| kontur dim. | 165.1(H)×108.44(V) ×13(D) mm |
| bezel Beräich | 155.4(H)×94.44(V) mm |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 35 (Max.)(Tr+Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| Betribssystemer Modus | SFT, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 71% NTSC |
| Liichtquell | WLED [8S2P] , 10K hours , W/O Driver |
| Gewiicht | 180g (Max.) |
| entworf fir | Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
