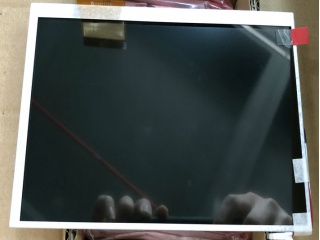

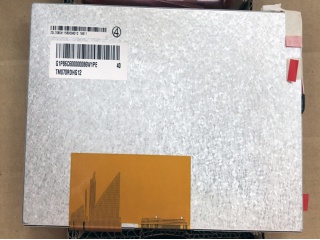

| Part Number | TM070RDHG12 |
| Mark | TIANMA |
| Gréisst | 7.0 |
| Applikatioun | Portable DVD Player |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | TIANMA |
| Modell | TM070RDHG12 |
| diagonal Gréisst | 7.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 134PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 154.08(H)×85.92(V) mm |
| kontur dim. | 164.9(H)×100(V) ×6(D) mm |
| bezel Beräich | 157.08(H)×89.39(V) mm |
| Behandlung | Antiglare |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Richtung | 12 o'clock |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/60/70 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K/16.7M 50% NTSC |
| Liichtquell | WLED [3S7P] , 20K hours , W/O Driver |
| Gewiicht | 165g (Typ.) |
| entworf fir | Portable DVD Player Digital Photo Frame |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| Stroumversuergung | 3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
