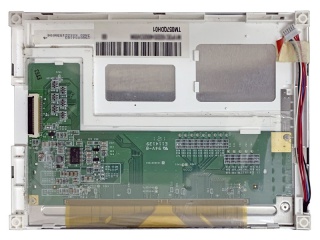

| Part Number | TM057KDH01-41 |
| Mark | TIANMA |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 5S3P |
| Interface | Parallel |
| Panel Mark | TIANMA |
| Panel Modell | TM057KDH01-41 |
| Panel Gréisst | 5.7" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 320(RGB)×240, QVGA, 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 115.2(W)×86.4(H) mm |
| bezel Ouverture | 118.2(W)×89.4(H) mm |
| Kontur Gréisst | 144(W)×104.6(H) ×12.8(D) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/70/60 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 12 o'clock |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K 50% NTSC |
| Lampe Typ | 5S3P WLED , 50K hours , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 160g (Typ.) |
| Applikatioun | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
