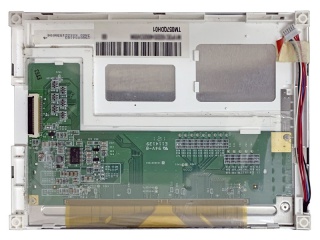

| Part Number | TM057KDH01-10 |
| Mark | TIANMA |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 5S3P WLED , 50K hours , No Driver |
| Interface | Parallel |
| Fabrikant beschwéiert | TIANMA |
| Modell Numm | TM057KDH01-10 |
| Écran Gréisst | 5.7 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 115.2 × 86.4 (H×V) |
| Kontur (mm) | 144 × 104.6 × 12.8 (H×V×D) |
| Bezel Beräich (mm) | 118.2 × 89.4 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Vue Wénkel | 70/70/60/70 (Typ.)(CR≥10) |
| Äntwert | 20 (Typ.)(Tr+Td) ms |
| gutt Vue op | 12 o'clock |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K 52% NTSC |
| mass | 157g (Typ.) |
| benotzt fir | Industrial |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
