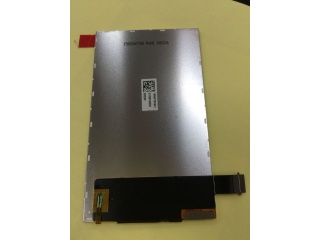

| Part Number | TM040YDHG41 |
| Mark | TIANMA |
| Gréisst | 4.0 |
| Applikatioun | Mobile Phone Handhel |
| Opléisung | 480×800 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Fabrikant beschwéiert | TIANMA |
| Modell Numm | TM040YDHG41 |
| Écran Gréisst | 4.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 480(RGB)×800 (WVGA) 235PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 51.84 × 86.4 (H×V) |
| Kontur (mm) | - |
| Vue Wénkel | - |
| Äntwert | - |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M |
| mass | - |
| benotzt fir | Mobile Phone Handheld & PDA |
| Erfrëschungsrate | 60Hz |
| touchscreen | - |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
