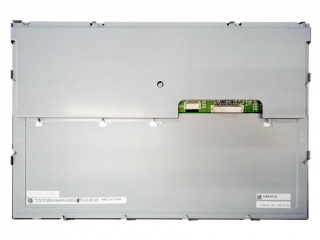

| Part Number | TCG101WXLPAANN-AN20-SA |
| Mark | Kyocera |
| Gréisst | 10.1 |
| Applikatioun | Industrial |
| Opléisung | 1280×800 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Kyocera |
| Panel Modell | TCG101WXLPAANN-AN20-SA |
| Panel Gréisst | 10.1" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 216.96(W)×135.6(H) mm |
| bezel Ouverture | 219.96(W)×138.6(H) mm |
| Kontur Gréisst | 236(W)×156.8(H) ×9.9(D) mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | - |
| Äntwert Zäit | 8/22 (Typ.)(Tr/Td) |
| weisen Faarwen | 16.2M 52% NTSC |
| Lampe Typ | WLED , 50K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 500g (Typ.) |
| Applikatioun | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
