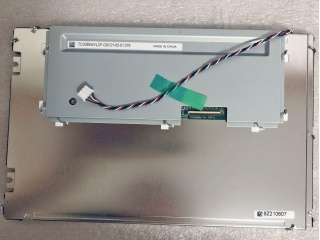

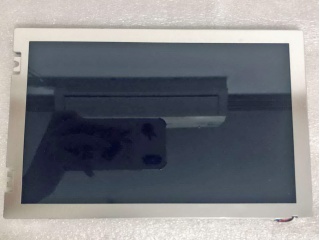

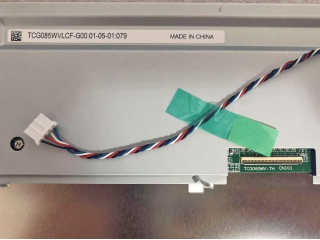

| Part Number | TCG085WVLCF-G00 |
| Mark | Kyocera |
| Gréisst | 8.5 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED , 50K hours , No Driver |
| Interface | Parallel |
| Fabrikant beschwéiert | Kyocera |
| Modell Numm | TCG085WVLCF-G00 |
| Écran Gréisst | 8.5 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×480 (WVGA) 109PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 184.8 × 110.88 (H×V) |
| Kontur (mm) | 210 × 134 × 11.1 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare |
| luminance | 320 cd/m² (Typ.) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Vue Wénkel | 60/60/60/45 (Typ.)(CR≥10) |
| Äntwert | 15/35 (Typ.)(Tr/Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K 49% NTSC |
| mass | TBD |
| benotzt fir | Industrial |
| Erfrëschungsrate | 60Hz |
| touchscreen | 4-wire Resistive Touch, G/G |
| Signal Typ | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| G085VW01 V0 | AUO | 8.5 | 800×480 |
| G085VW01 V1 | AUO | 8.5 | 800×480 |
| G085VW01 V3 | AUO | 8.5 | 800×480 |
| KMT085WV | Samsung | 8.5 | 800×480 |
| LM085YB1T01 | SHARP | 8.5 | 800×480 |
| LQ085Y3DG01 | SHARP | 8.5 | 800×480 |
| LQ085Y3DG18 | SHARP | 8.5 | 800×480 |
| LT085AC18N00 | TOSHIBA | 8.5 | 800×480 |
| LW850AT9301 | Innolux | 8.5 | 800×480 |
