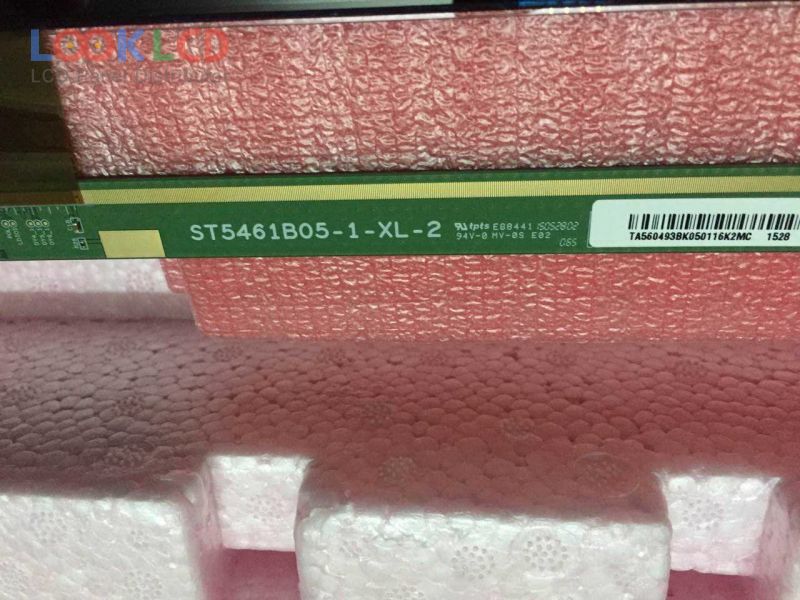

| Part Number | ST5461B05-1 |
| Mark | CSOT |
| Gréisst | 55 |
| Applikatioun | LCTV |
| Opléisung | 1920×1080 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 4000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | CSOT |
| Panel Modell | ST5461B05-1 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 55 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | HVA, Normally Black, Transmissive |
| aktiv Beräich | 1209.6×680.4 mm |
| skizzéieren | 1223.6×697.1 mm |
| Uewerfläch | Antiglare (Haze 2%), Hard coating (3H) |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 7.0% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 4000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193168% |
| Äntwert Zäit | 6.5 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz (60Hz Input) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
