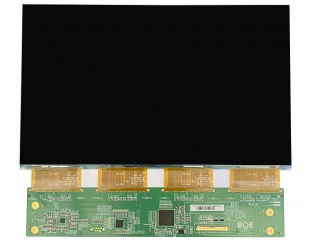

| Part Number | RV101FBB-N00 |
| Mark | BOE |
| Gréisst | 10.1 |
| Applikatioun | 3D Printer |
| Opléisung | 4920×2880 |
| Zesummesetzung | a-Si TFT-LCD, CELL |
| Hellegkeet | |
| CR | 400:1 |
| Faarwen | Monochrome |
| Géigeliicht | No |
| Interface | eDP |
| Panel Mark | BOE |
| Panel Modell | RV101FBB-N00 |
| Panel Gréisst | 10.1" |
| Panel Typ | a-Si TFT-LCD, CELL |
| Resolutioun | 4920×2880, 564PPI |
| Pixel Format | Rectangle |
| Affichage Beräich | 221.4(W)×129.6(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 227.43(W)×139.5(H) ×0.95(D) mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 0 cd/m² |
| Kontrast Verhältnis | 400:1 (Min.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Display Modus | ADS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 35 (Max.)(Tr+Td) |
| Glas Déift | - |
| transmissivitéit | 6.0% (Typ.) |
| weisen Faarwen | Monochrome |
| Lampe Typ | No B/L |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Chauffeur ic | COGBuilt-in 4 source chips |
| Panel Gewiicht | TBD |
| Applikatioun | 3D Printer |
| Signal Interface | eDP (4 Lanes) , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -10 ~ 80 °C |
