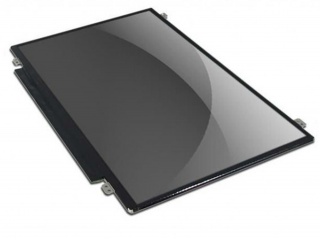

| Part Number | PT156WHM-N10 |
| Mark | BOE |
| Gréisst | 15.6 |
| Applikatioun | Industrial |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 10S4P |
| Interface | |
| Panel Mark | BOE |
| Panel Gréisst | 15.6" |
| Resolutioun | 1366(RGB)×768, WXGA, 100PPI |
| Affichage Beräich | 344.23(W)×193.54(H) mm |
| Kontur Gréisst | 359.5(W)×223.8(H) ×3.2(D) mm |
| Hellegkeet | 400 cd/m² (Typ.) |
| Vue Wénkel | 45/45/20/40 (Typ.)(CR≥10) |
| beschte Vue op | - |
| weisen Faarwen | 262K 45% NTSC |
| Frequenz | 60Hz |
| Gewiicht | 370g (Max.) |
| Panel Modell | PT156WHM-N10 (BOE06A5) |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 12 (Typ.)(Tr+Td) |
| Lampe Typ | 10S4P WLED , 30K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-201 | Samsung | 15.6 | 1920×1080 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
| N156B6-L0A | Innolux | 15.6 | 1366×768 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
