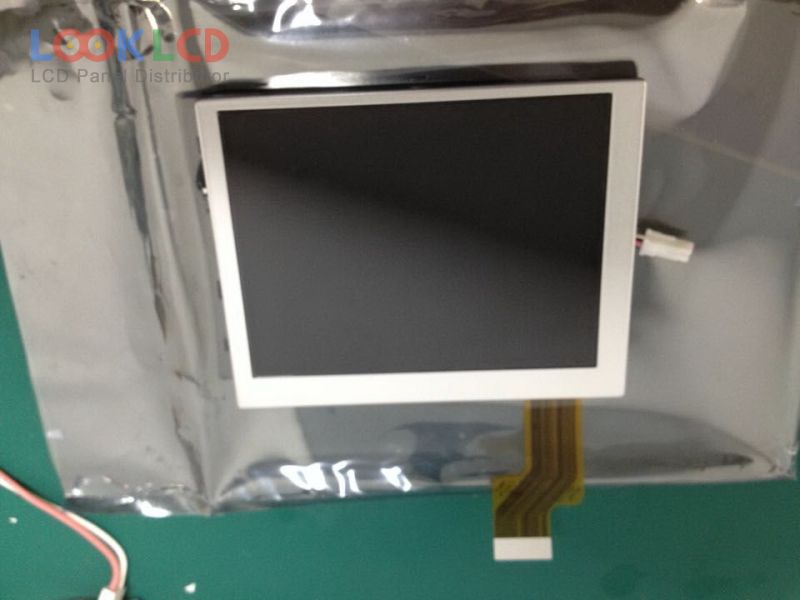

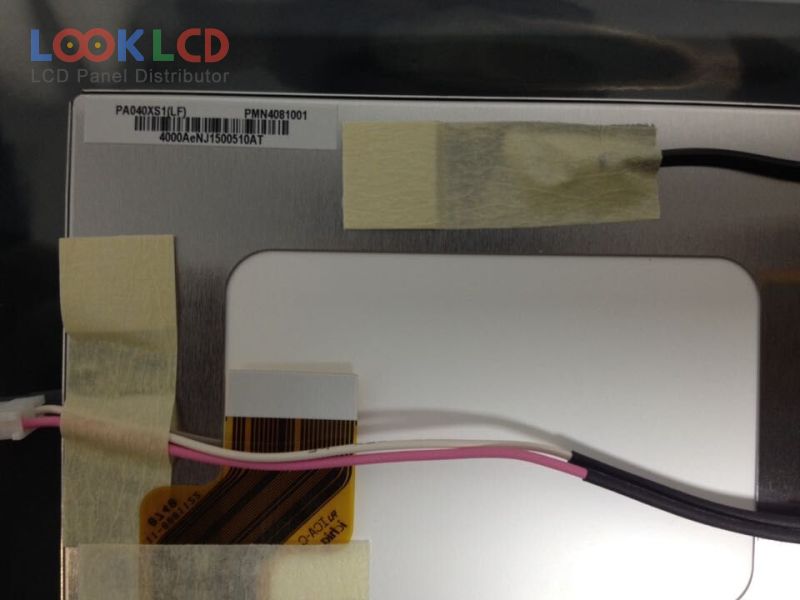

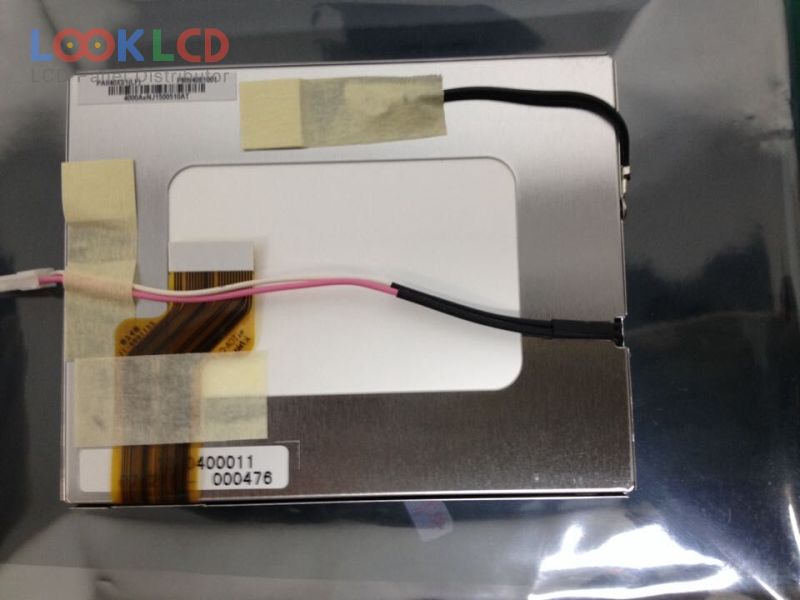

| Part Number | PA040XS1 |
| Mark | E Ink |
| Gréisst | 4.0 |
| Applikatioun | PND |
| Opléisung | 320×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 350:1 |
| Faarwen | Full color |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | PVI |
| Panel Modell | PA040XS1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.0 inch |
| Resolutioun | 320(RGB)×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 81.12×61.78 mm |
| skizzéieren | 96×75.98×6.5 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | Full color |
| Äntwert Zäit | 15/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | TFT Specific Analog RGB, 28 pins |
| Input Volt | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| Applikatioun | PND |
| A040FL01 V2 | AUO | 4.0 | 480×272 |
| AMS395GB04 | Samsung | 4.0 | 360×640 |
| LB040Q02-TD05 | LG Display | 4.0 | 320×240 |
| LB040Q03-TD01 | LG Display | 4.0 | 320×240 |
| LB040Q04-TD01 | LG Display | 4.0 | 320×240 |
| LH400WS2-SD03 | LG Display | 4.0 | 640×1136 |
| LH400WV3-SD04 | LG Display | 4.0 | 480×800 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LTM04C380K | TOSHIBA | 4.0 | 640×480 |
| PA040XS1 | E Ink | 4.0 | 320×234 |
| 35HVF0H | SII | 3.5 | 320×480 |
| 43WQW4T | SII | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LQ036T1DG01 | SHARP | 3.6 | 272×480 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| LTE480WV-F01 | Samsung | 4.8 | 800×480 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
