OEL9M1026-W-E

OEL9M1026-W-E

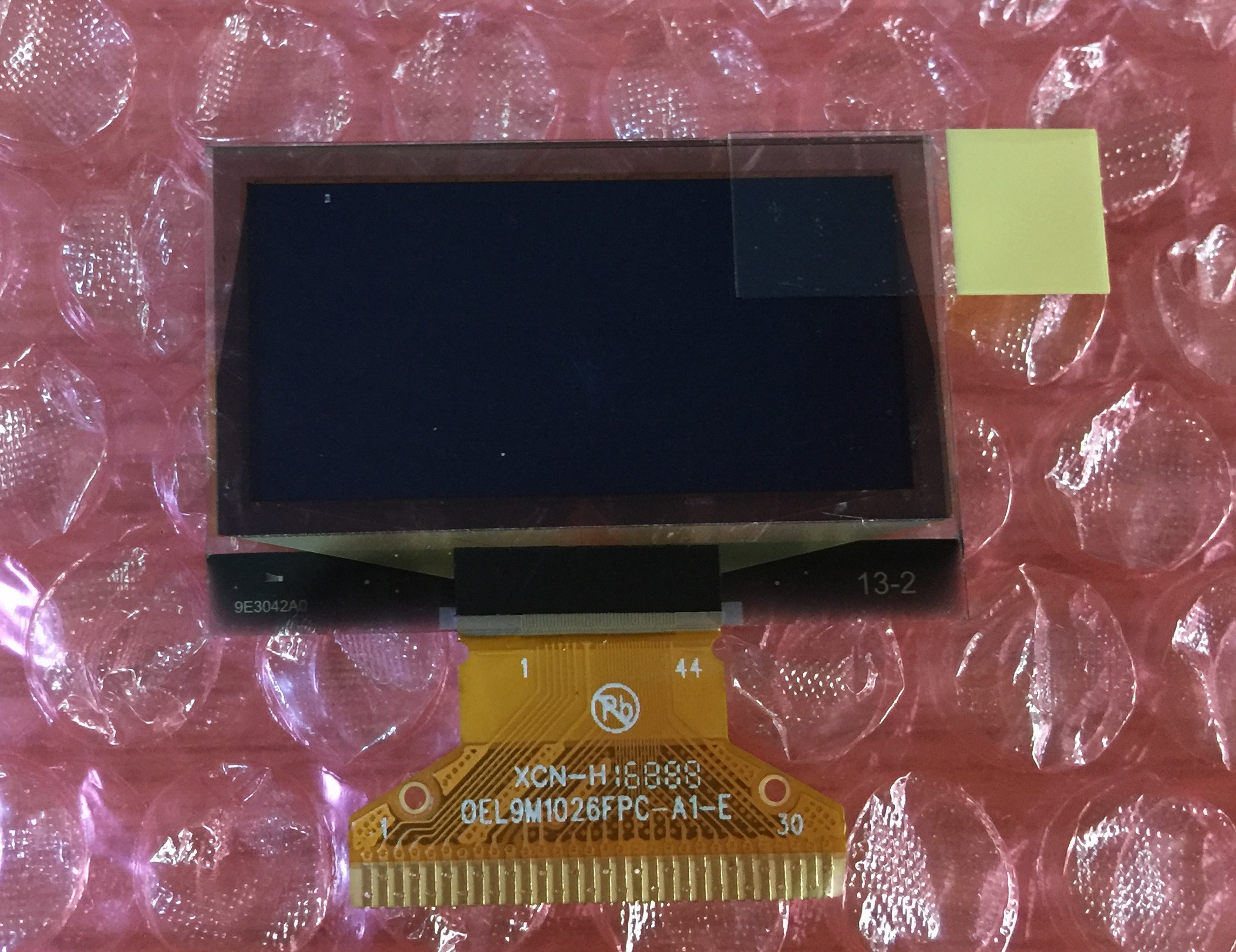

OEL9M1026-W-E thumb
Mark
TRULY
Gréisst
1.3
Applikatioun
Wearable MP3 PMP
Opléisung
128×64
Zesummesetzung
PM-OLED, OLED
Hellegkeet
CR
10000:1
Faarwen
Mono(White)
Backlight
self
Interface
8-bit
In Stock
14226
Spezifikatioune

Part Number OEL9M1026-W-E
MarkTRULY
Gréisst1.3
ApplikatiounWearable MP3 PMP
Opléisung128×64
ZesummesetzungPM-OLED, OLED
Hellegkeet
CR10000:1
FaarwenMono(White)
Géigeliichtself
Interface8-bit
MarkTRULY
ModellOEL9M1026-W-E
diagonal Gréisst1.3 inch
TypPM-OLED, OLED
Pixel Format128×64  110PPI
ConfiguratiounRectangle
aktiv Beräich29.42(H)×14.7(V) mm
kontur dim.34.5(H)×23(V) ×1.55(D) mm
bezel Beräich31.42(H)×16.7(V) mm
Behandlung-
luminance116 cd/m² (Typ.)
Kontrast Verhältnis10000:1 (Min.) (TM)
Vue RichtungSymmetry
Äntwert Zäit0.02/0.02 (Max.)(Tr/Td)
Vue Wénkel80/80/80/80 (Min.)
Betribssystemer Modus-
Ënnerstëtzung FaarfMono(White)
Liichtquellself , 20K hours
Gewiicht3.00g (Typ.)
entworf firWearable MP3 PMP
Frame Taux100Hz
Touch PanelWithout
d-ic detailCOG Built-in SH1106G
Interface Typ8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC
Stroumversuergung1.65/3.5V (Typ./Max.)(VDD1)
ËmweltOperating Temperature: -40 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
