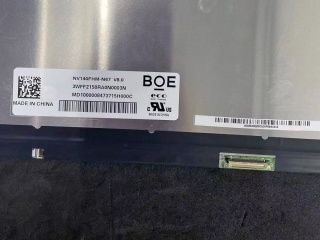

| Part Number | NV140FHM-N67 |
| Mark | BOE |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | BOE |
| Modell | NV140FHM-N67 (BOE08ED) |
| diagonal Gréisst | 14.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 157PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 309.312(H)×173.988(V) mm |
| kontur dim. | 314.31(H)×191.09(V) ×2.6(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | ADS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.2M 45% NTSC |
| Liichtquell | WLED [9S5P] , 15K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B140QAN01.0 | AUO | 14.0 | 2560×1440 |
| CLAA140UA01 CN | CPT | 14.0 | 1600×900 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| LP140WH1-TLD1 | LG Display | 14.0 | 1366×768 |
| LTN140AT02-C02 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-T01 | Samsung | 14.0 | 1366×768 |
| LTN140KT06-T01 | Samsung | 14.0 | 1600×900 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140FGE-E32 | Innolux | 14.0 | 1600×900 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
