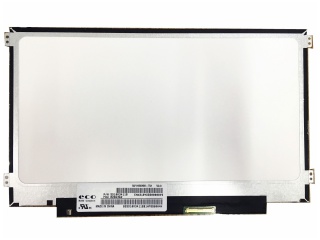

| Part Number | NV116WHM-T01 |
| Mark | BOE |
| Gréisst | 11.6 |
| Applikatioun | Laptop |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | 8S3P |
| Interface | eDP |
| Panel Mark | BOE |
| Panel Modell | NV116WHM-T01 (BOE0786) |
| Panel Gréisst | 11.6" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1366(RGB)×768, WXGA, 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 256.125(W)×144(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 278(W)×168.5(H) ×3.2(D) mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Display Modus | ADS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K 51% NTSC |
| Lampe Typ | 8S3P WLED , 15K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | On-Cell Touch |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Applikatioun | Laptop |
| Signal Interface | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
