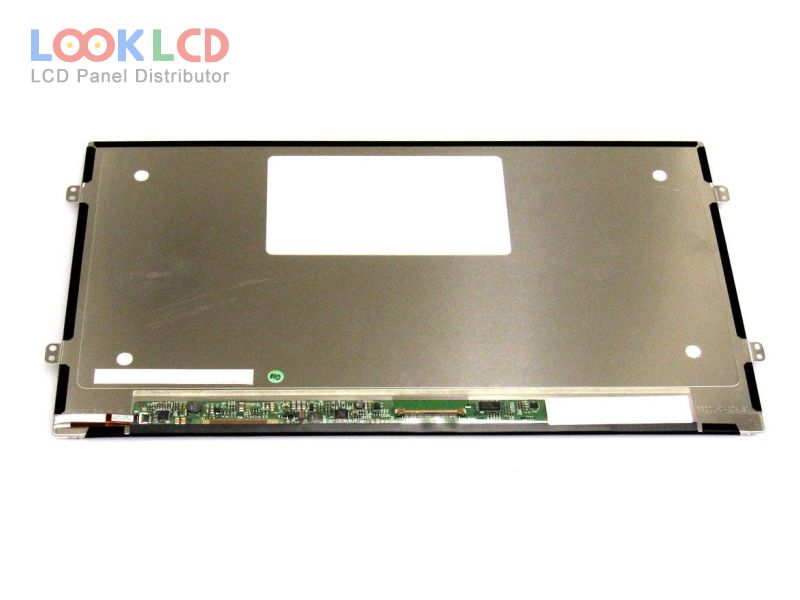

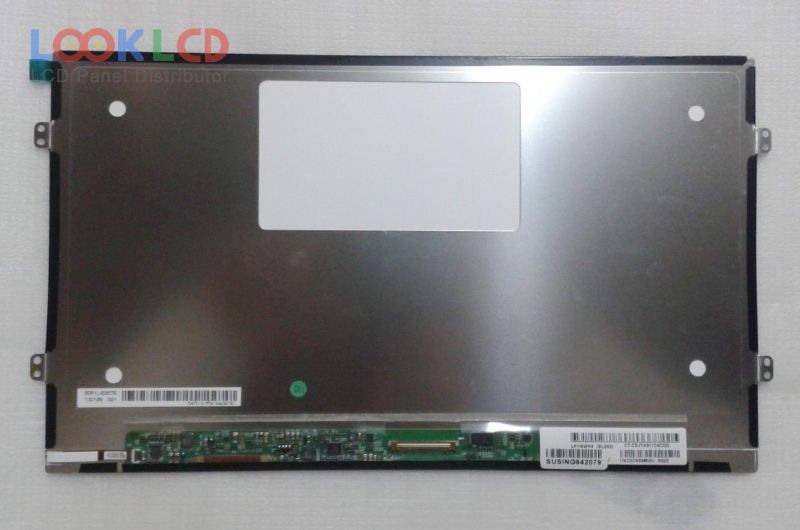

LP116WH4-SLN2

LP116WH4-SLN2
LP116WH4-SLN2
LP116WH4-SLN2 thumb LP116WH4-SLN2 thumb
Mark
LG Display
Gréisst
11.6
Applikatioun
PAD
Opléisung
1366×768
Zesummesetzung
LCM
Hellegkeet
400
CR
800:1
Faarwen
16.7M
Backlight
WLED
Interface
LVDS
In Stock
1130
Spezifikatioune

Part Number LP116WH4-SLN2
MarkLG Display
Gréisst11.6
ApplikatiounPAD
Opléisung1366×768
ZesummesetzungLCM
Hellegkeet400
CR800:1
Faarwen16.7M
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLP116WH4-SLN2
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst11.6 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusIPS, Normally Black, Transmissive
aktiv Beräich256.125×144 mm
skizzéieren279.4×158.05×4.5 mm
UewerflächAntiglare
Hellegkeet400 cd/m² (Typ.)
Kontrast Verhältnis800:1 (Typ.)
weisen Faarwen16.7M (8-bit)
Äntwert Zäit25 (Typ.)(Tr+Td)
Vue Wénkel85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe TypWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounPAD
Famill Modell
LP116WF1-SPA1 LG Display 11.6 1920×1080
LP116WH1-TLA1 LG Display 11.6 1366×768
LP116WH1-TLN1 LG Display 11.6 1366×768
LP116WH1-TLP1 LG Display 11.6 1366×768
LP116WH2-TLN1 LG Display 11.6 1366×768
LP116WH4-SLA1 LG Display 11.6 1366×768
LP116WH4-SLN1 LG Display 11.6 1366×768
LP116WH4-SLN2 LG Display 11.6 1366×768
LP116WH6-SLA1 LG Display 11.6 1366×768
LP116WH6-SPA2 LG Display 11.6 1366×768
