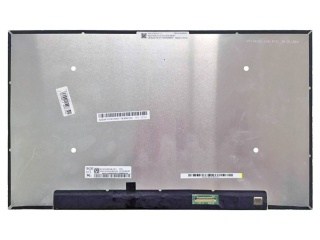

| Part Number | NT140FHM-N46 |
| Mark | BOE |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 16.2M |
| Géigeliicht | 11S4P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | BOE |
| Écran Gréisst | 14.0 inch |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 157PPI |
| aktiv Beräich (mm) | 309.31 × 173.99 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 220 cd/m² (Typ.) |
| Vue Wénkel | 45/45/20/40 (Typ.)(CR≥10) |
| gutt Vue op | 6 o'clock |
| Faarfdéift | 16.2M 45% NTSC |
| kontur Form | Slim (PCBA Bent, T≤3.0mm) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | NT140FHM-N46 (BOE08D9) |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 315.81 × 186.05 × 5 (H×V×D) |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Äntwert | 12 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | TN, Normally White, Transmissive |
| benotzt fir | Laptop |
| touchscreen | Without |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
