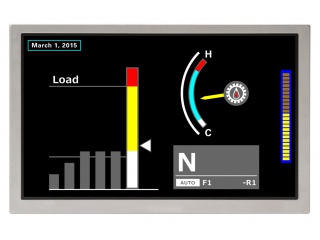

| Part Number | NL8048BC21-03F |
| Mark | NLT |
| Gréisst | 8.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | NLT |
| diagonal Gréisst | 8.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 116PPI |
| aktiv Beräich | 174(H)×104.4(V) mm |
| bezel Beräich | - |
| luminance | 1000 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K/16.7M 72% NTSC |
| Gewiicht | 225g |
| Frame Taux | 60Hz |
| Interface Typ | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| Modell | NL8048BC21-03F |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 192(H)×122(V) mm |
| Behandlung | Antiglare |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Betribssystemer Modus | SFT, Normally Black, Transmissive |
| Liichtquell | WLED |
| entworf fir | Industrial Outdoor High Brightness |
| Touch Panel | Without |
