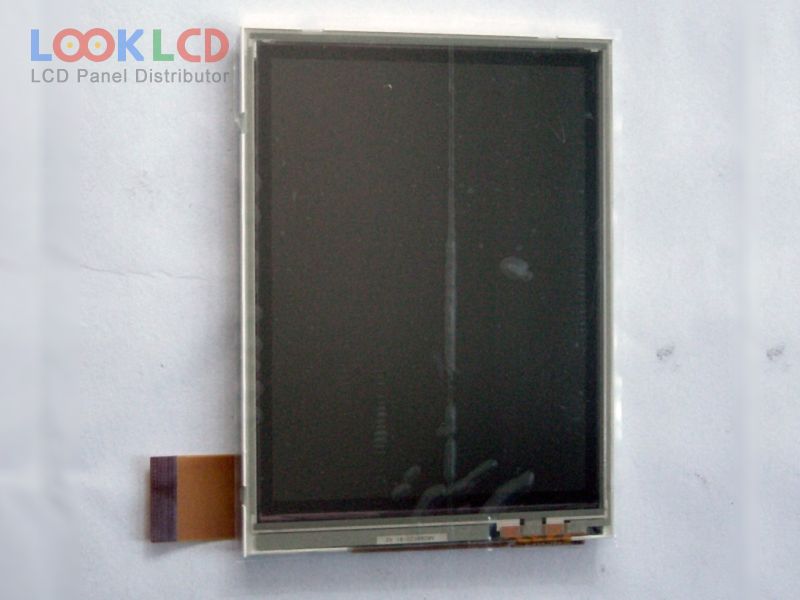

| Part Number | NL2432HC22-41B |
| Mark | NLT |
| Gréisst | 3.5 |
| Applikatioun | PDA |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 150:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | NEC |
| Panel Modell | NL2432HC22-41B |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 53.64×71.52 mm |
| skizzéieren | 63.5×85×5.7 mm |
| Uewerfläch | Clear, Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 150:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| weisen Faarwen | 262K (6-bit), CIE193140% |
| Äntwert Zäit | 7/23 (Typ.)(Tr/Td) |
| Vue Wénkel | 30/30/30/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S1PWLEDWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit) + SPI, 45 pins |
| Input Volt | 3.0V (Typ.) |
| Applikatioun | PDA |
