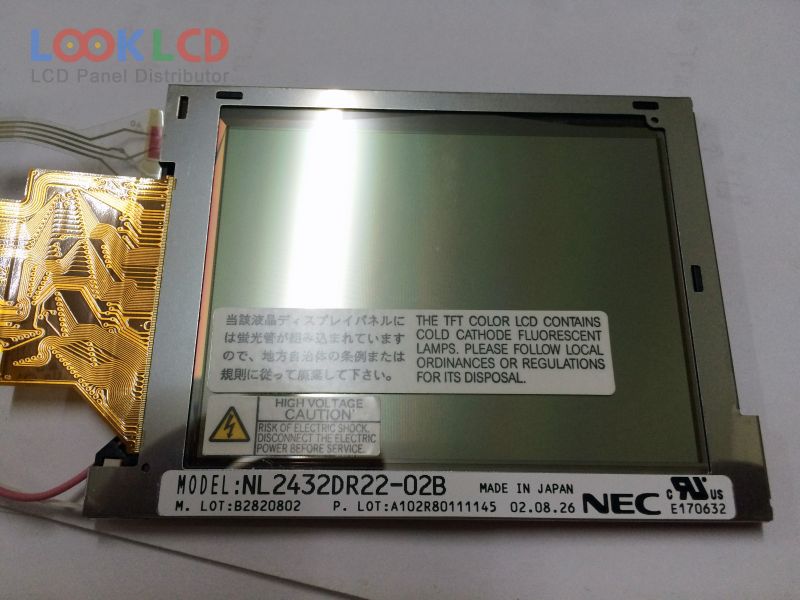

| Part Number | NL2432DR22-02B |
| Mark | NLT |
| Gréisst | 3.5 |
| Applikatioun | PDA |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 85 |
| CR | |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | NEC |
| Panel Modell | NL2432DR22-02B |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Reflective |
| aktiv Beräich | 53.64×71.52 mm |
| skizzéieren | 70×96×4.85 mm |
| Uewerfläch | |
| Hellegkeet | 85 cd/m² (Typ.) |
| Kontrast Verhältnis | 8/10(Reflective) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 15/17 (Typ.)(Tr/Td) |
| Vue Wénkel | |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 45 pins |
| Input Volt | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| Applikatioun | PDA |
| 35HVE1H | SII | 3.5 | 320×480 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| NL2432DR22-02B | NLT | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TX09D83VM3CEA | KOE | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
