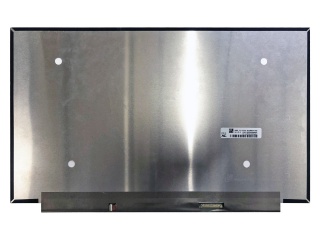

| Part Number | NE156QUM-NZ3 |
| Mark | BOE |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM , Oxide TFT-LC |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | 12S6P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | BOE |
| Écran Gréisst | 15.6 inch |
| Pixel Zuel | 3840(RGB)×2160 (UHD) 283PPI |
| aktiv Beräich (mm) | 344.218 × 193.622 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 400 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 16.7M 100% sRGB |
| kontur Form | Slim (PCBA Flat, T≤3.2mm) |
| Erfrëschungsrate | 120Hz |

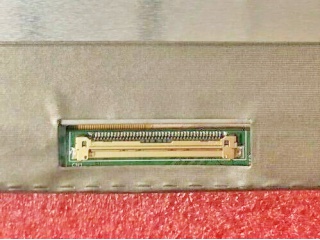

| Signal Typ | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

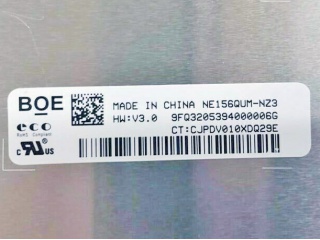

| Modell Numm | NE156QUM-NZ3 (BOE08E0) |
| Écran Typ | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 350.66 × 216.12 × 2.6 (H×V×D) |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1200 : 1 (Typ.) (TM) |
| Äntwert | 10 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| benotzt fir | Laptop |
| touchscreen | Without |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| CLAA156WA11A | CPT | 15.6 | 1366×768 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| N156BGE-E42 | Innolux | 15.6 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
