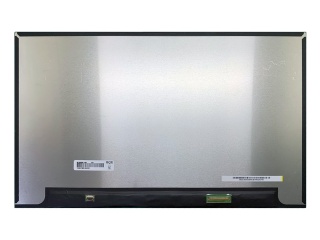

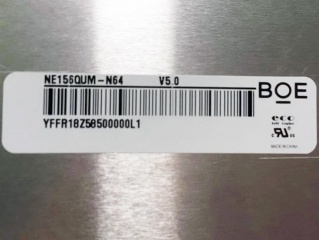

| Part Number | NE156QUM-N64 |
| Mark | BOE |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 3840×2160 |
| Zesummesetzung | Oxide TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 10S6P |
| Interface | eDP |
| Panel Mark | BOE |
| Panel Gréisst | 15.6" |
| Resolutioun | 3840(RGB)×2160, UHD, 283PPI |
| Affichage Beräich | 344.218(W)×193.622(H) mm |
| Kontur Gréisst | 350.52(W)×205.92(H) ×4.6(D) mm |
| Hellegkeet | 350 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M 72% NTSC |
| Frequenz | 60Hz |
| Form Stil | Slim (PCBA Bent, T≤3.0mm) |
| Signal Interface | eDP (4 Lanes) , eDP1.4a , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | NE156QUM-N64 (BOE07D9) |
| Panel Typ | Oxide TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | ADS, Normally Black, Transmissive |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Lampe Typ | 10S6P WLED , 15K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Laptop |
