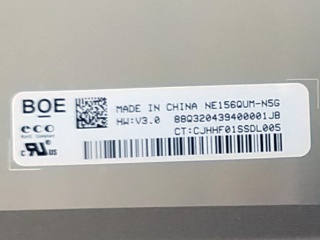

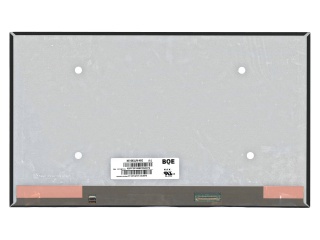

| Part Number | NE156QUM-N5G |
| Mark | BOE |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM , Oxide TFT-LC |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | 12S6P WLED , 20K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | BOE |
| Modell Numm | NE156QUM-N5G (BOE0895) |
| Écran Gréisst | 15.6 inch |
| Écran Typ | LCM , Oxide TFT-LCD |
| Pixel Zuel | 3840(RGB)×2160 (UHD) 283PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 344.218 × 193.622 (H×V) |
| Kontur (mm) | 350.66 × 205.64 × 4.6 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 340 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 100% sRGB |
| kontur Form | Slim (PCBA Bent, T≤3.0mm) |
| benotzt fir | Laptop |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
