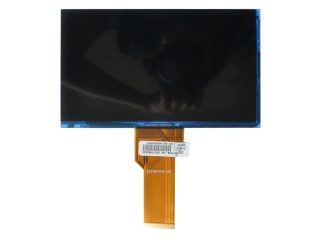

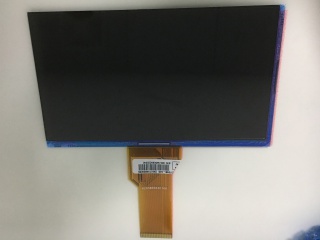

| Part Number | NE070NB-04G |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | Digital Photo Frame |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , CELL |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | Parallel |
| Mark | Innolux |
| diagonal Gréisst | 7.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 134PPI |
| aktiv Beräich | 154.08(H)×85.92(V) mm |
| bezel Beräich | - |
| luminance | 0 cd/m² |
| Vue Richtung | - |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| Plackedicke | 0.50+0.50 mm |
| Ënnerstëtzung Faarf | 16.7M |
| Gewiicht | 47.0g (Typ.) |
| Frame Taux | 60Hz |
| d-ic detail | COG Built-in 1 source + 1 gate chips |
| Interface Typ | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Stroumversuergung | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Modell | NE070NB-04G |
| Typ | a-Si TFT-LCD , CELL |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| Behandlung | Antiglare |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Iwwerdroung | 4.61% (Typ.)(with Polarizer) |
| Liichtquell | No B/L |
| entworf fir | Digital Photo Frame |
| Touch Panel | Without |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CRD070TN03-50NM01 | Other | 7.0 | 800×480 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| LB070WV3-SD03 | LG Display | 7.0 | 800×480 |
| LD070WU2-SM01 | LG Display | 7.0 | 1200×1920 |
| LT070CB01000 | TOSHIBA | 7.0 | |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
